Why does a tile magnet grinding machine lose accuracy so quickly? For more than 12 years I have been in the sintered magnet surface grinding and industrial magnet finishing equipment industry. I have seen this problem destroy excellent manufacturing lines.
In this article, I will discuss three important areas of maintenance: spindle bearing maintenance, coolant filter maintenance, and wheel flange inspections. These actions will keep your computer functioning smoothly for years on end.
What Is a Tile Magnet Grinding Machine and Why Does It Matter?

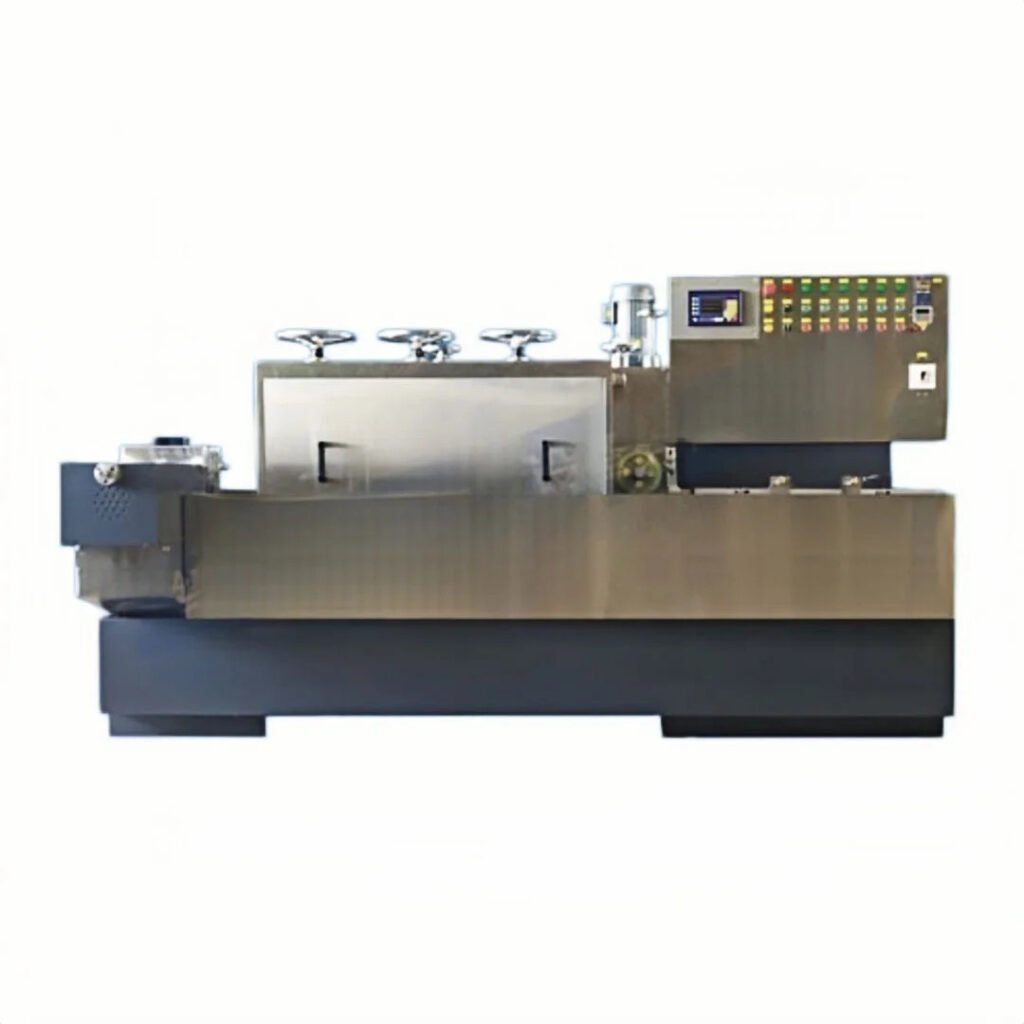

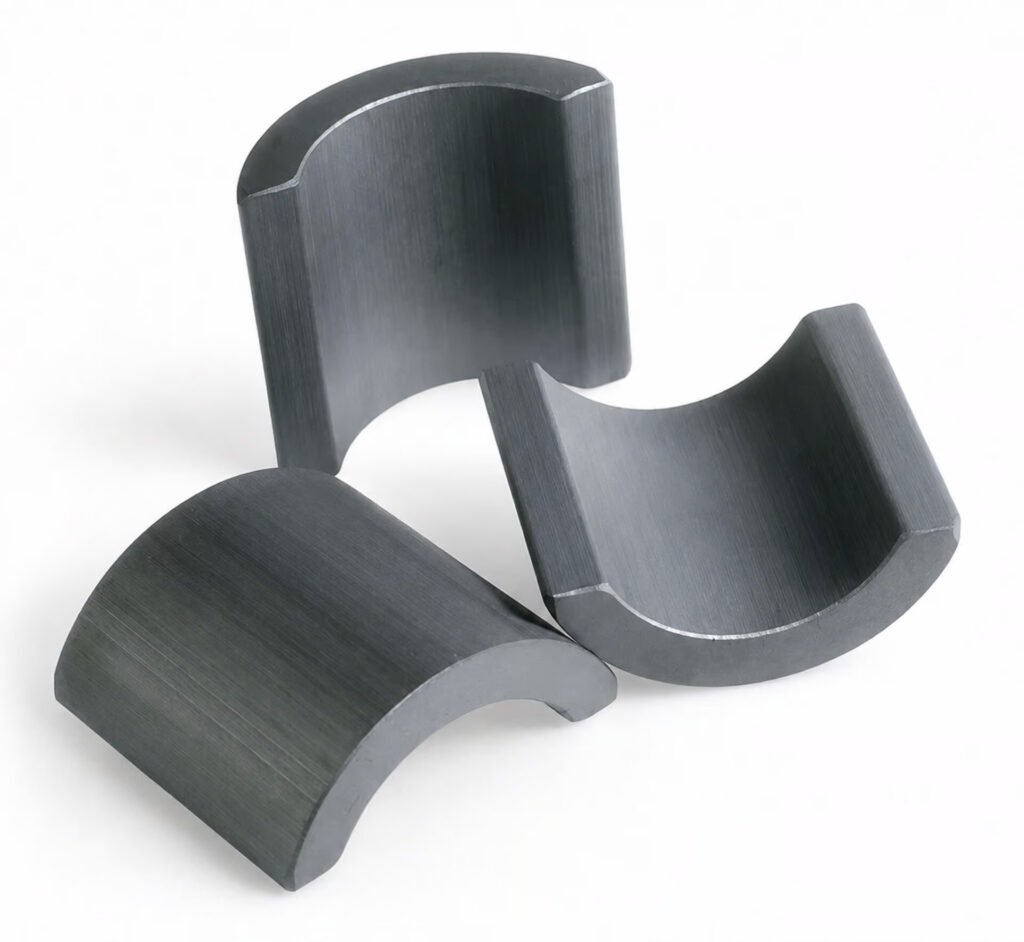

A tile magnet grinding machine grinds flat tile-shaped magnets to the proper size and polish. It may be applied for NdFeB arc magnet and ferrite block. Grinding wheel, coolant system, magnetic holder. They keep the magnet steady while grinding the tile-shaped magnet grinding process. This equipment is the essential for motor rotor magnet manufacturing.
Even little deviations in form damage motor output. These equipment are present in EV motor magnet processing machine and Servo motor magnet grinding factories. If not handled with proper care the finish will degrade in quality. Cycle times increase. Rework costs rise.
| Componente | Función | Risk if Neglected |
| Spindle Bearing | Spins the grinding wheel | Vibration, surface defects |
| Coolant Filter | Cleans the cutting fluid | Heat damage, clogged nozzles |
| Wheel Flange | Holds wheel to spindle | Imbalance, wheel breakage |
| Magnetic Chuck | Holds magnets during grind | Slippage, poor finish |
| Dresser Unit | Sharpens the wheel | Glazed wheel, slow cycle |
How Do Spindle Bearings Affect Grinding Precision in Magnet Machines?
The spindle bearing is the heart of any motorized magnet grinding device. The wheel starts wobbling as it becomes old. Even a few microns of runout may destroy the finish of NdFeB arc magnet finishing parts. In a continuous grinding manufacturing line or pass-through grinding conveyor system, the bearings are under a tremendous strain all day.
You have to examine and grease them on a specific timetable. Don’t wait for anything to shatter. Catching wear early avoids expensive replacement of the spindle and extended periods of down time.
How Often Should You Lubricate Spindle Bearings?
- Lubrication of bearings 500-800 hours
- Oil mist systems: Check level daily before start-up
- Above 3,000 high-speed spindles RPM: Use only precise grade grease
- Always remove old grease before applying fresh grease. Do not overfill
Spindle Bearing Wear Signs
| Warning Sign | Likely Cause | Action Needed |
| High vibration during grind | Bearing wear | Check runout, replace bearing |
| Unusual spindle noise | Dry or dirty bearing | Re-lube or replace |
| Surface roughness rising | Loss of spindle stiffness | Full spindle check |
| Heat near spindle housing | Too much grease or failure | Reduce lube, inspect bearing |
Step-by-Step Spindle Bearing Check
- Step 1: Shut Down and Lock Out
- Step 2: Dial indicator – goal less than 2 microns of run out
- Step 3: Spin by hand – listen for clicking or grinding
- Step 4: Run it for a few minutes and feel the housing for heat
- Step 5: Document outcomes and compare to your prior check
How Does a Dirty Coolant Filter Damage Your Magnet Grinding Output?
Coolant serves three objectives in high throughput magnet machining. It cools the part down. It washes away swarf. It lubricates the grinding zone. Dirty filter violates all three at once. As the flow diminishes, the heat increases up.
The heat generates micro-cracks in the surface grinding regions of the sintered magnet. Swarf in the tank scratches completed surfaces in a ferrite tile magnet grinding machine. Good parts turn to junk – quickly. Coolant filter maintenance is cheap, but highly effective.
Coolant System Maintenance Checklist
- Daily: Check nozzle flow for weak or irregular stream
- Weekly: Clean out filter mesh and eliminate swarf build up.
- Monthly: Empty, clean and replenish the entire coolant tank
- Quarterly: Check coolant mix with refractometer – aim 5–8%
Coolant Filter Types and Performance
| Filter Type | Mesh Size | El mejor caso de uso | Change Interval |
| Paper Band Filter | 25–50 micron | NdFeB fine grinding | Daily advance |
| Magnetic Separator | N/A | Ferrite and steel swarf | Weekly cleaning |
| Cartridge Filter | 10–25 micron | Arc tolerance precision grinding | Monthly |
| Centrifugal Cleaner | Variable | Multi-station grinding system | Quarterly flush |
What Happens If You Skip Coolant Filter Maintenance?
- Magnet surfaces scratched by swarf – parts fail testing
- Bacteria grows in the tank. Bad smell and danger of skin infection for workers
- Clogged nozzles produce hot areas – magnets break or lose their strength
- Pump and nozzle obstructions lead to increased downtime over time
Why Does Wheel Flange Condition Control Your Grinding Safety and Quality?
Wheel flange: Holds the grinding wheel to the spindle. The wheel is vibrating if it is worn or filthy. On rare occasions it breaks, at speed. This is a major safety issue for EV motor magnet processing equipment and servo motor magnet grinding lines.
An imbalanced wheel also produces chatter marks on the magnet faces. These do not meet the strict arc tolerance precision grinding standards required for motor usage. The flange inspection takes less than 10 minutes. It’s good for your people and your parts.
Wheel Flange Inspection and Mounting Steps
- Clean both sides of the flanges before each wheel change
- Look for cracks or chips – repair immediately if any are detected.
- Never use an impact tool on flange bolts Use a torque wrench
- Mount the wheel using a static balancer
- 3-minute no-load test – Listen for noise or vibration
Wheel Flange: Advantages and Disadvantages by Type
| Flange Type | Ventaja | Desventaja | Mejor Para |
| Fixed Hub Flange | High rigidity, low runout | Slower wheel change | Precision arc magnet grinding |
| Quick-Release Flange | Fast wheel swap | Less rigid at high RPM | Multi-station grinding system |
| Blotter Flange | Absorbs vibration | Wears faster | Ferrite magnet rough grinding |
| ISO Standard Flange | Universal fit | May need adapter | General industrial magnet finishing |
The greatest accuracy of fixed hub flanges is beneficial for tight tolerance operations. Quick release type for high mix lines. Always fit the flange to the machine speed rating .
What Are Real-World Examples of Tile Magnet Grinding Machine Maintenance Saving Production?
And this isn’t simply a hypothesis. Real factories benefit greatly from taking care of their automated tile magnet grinding machine. Here are four actual field examples:
Case Study: Maintenance Impact on Magnet Grinding Lines
| Tipo de fábrica | Problem Found | Maintenance Action | Resultado |
| EV Motor Plant | Rising surface roughness on NdFeB tiles | Spindle bearing replaced at 800 hrs | Ra dropped from 0.8 to 0.3 micron |
| Ferrite Magnet Maker | High scrap from dirty coolant | Weekly filter flush added | Scrap fell by 34% in 60 days |
| Servo Motor Supplier | Chatter marks on arc magnets | Flange rebalanced monthly | Yield rose from 88% to 97% |
| Multi-Station Grinding Line | Frequent unplanned stops | Preventive maintenance log added | Downtime fell 52% in one quarter |
The findings show one thing. Proactive maintenance trumps reactive repair. It doesn’t matter if you operate small ferrite magnet grinding machine or a comprehensive multi-station grinding system. Check early. Small fix. “Don’t fail hard.
FAQs About Tile Magnet Grinding Machine Maintenance
How Often Should I Replace the Spindle Bearing on a Tile Magnet Grinding Machine?
In industrial magnetic finishing machines, most of the spindle bearings have a service life of 8,000 to 12,000 hours. With the right lubrication and attention. Check them every 500 hours. Change when runout is more than your limit. Normally 2 to 5 microns. Early replacement is usually less costly than a mid-run failure.
- Check runout with dial indication every 500 Hrs
- Track each check – patterns suggest early wear
- Always specify the bearing grade for the manufacturer
What Coolant Mix Ratio Works Best for NdFeB Magnet Grinding?
Water soluble oil 5 to 7% mix for completing NdFeB arc magnets. Weekly refractometer check. Rusts too thin. If it becomes too thick, it froths. Change the complete tank every 4-6 weeks to avoid bacteria development.
- Use a pH-neutral or slightly alkaline coolant
- Never combine various kinds of coolants
- Full clean tank before each filling
How Do I Know If My Grinding Wheel Flange Needs Replacement?
Every time you change the wheel, check the flange face. Look for corrosion, pits or fractures. If the face is not flat, the wheel will not run true. It’s gonna rattle. Any crack implies replace immediately, do not run it.
- Check the flange flatness using a straight edge.
- Replace O-rings or gaskets if your flange utilizes them.
- Never re-use a flange that has been dropped or over-torqued
Can Poor Maintenance Cause Magnets to Lose Magnetic Strength?
Yes, the primary danger is heat. Partial demagnetization may occur if the coolant fails and the temperature of the NdFeB magnet exceeds 80°C. It can’t be undone. Stop this. Good coolant care, constant nozzle flow. Surface grinding of sintered magnet requires temp control as important as size control.
- Keep coolant flow at the level established by the manufacturer
- Check the magnet heat with a contact thermometer now and then
- If your coolant system is poor, reduce wheel speed
What Is the Right Way to Dress a Grinding Wheel on a Tile Magnet Grinding Machine?
Dress the wheel if the finish quality deteriorates or the cut rate decreases. Use diamond dresser at a depth of 0.01 to 0.02 mm /pass. Too deep opens the wheel up much too much. Too light and it glazes up too quickly. Record dress cycles to monitor wheel life.
- Dress between each batch of tight-spec components
- Regularly clean the dresser tip – a worn diamond delivers terrible results
- Keep depth the same each pass – use auto-dress if you have it
Conclusión
Daily Maintenance for your Tile Magnet Grinding Machine Verify the spindle. Wipe the coolant filter. check the flange of the wheel. Small inspections prevent large issues. They keep your components clean and your line moving. Vimfun produce amazing automated grinding machine magnet.
They provide multi-station grinding systems and continuous grinding production lines. Their equipment are good for processing the magnets of EV motors and making the magnets for motor rotors. Go to Vimfun now! Find the machine that suits your line.
