Rotary Diamond Wire Cutting Machine – Speed & Smooth Cutting

Accuracy is crucial in the world of modern manufacturing. Hard and brittle materials — such as silicon, sapphire or advanced ceramics — that companies work with require tools to be able to cut precisely without destroying the material. This is where the rotary diamond wire cutting machine plays a role. It’s built to give you an accurate, smooth and steady cut every time. Rather than relying on the force of a traditional saw to cut, which can crack or chip materials that are more delicate, this machine employs an ultrafine diamond-coated wire to make quick work of cutting through materials.

High Technology Rotary Diamond Wire Machine

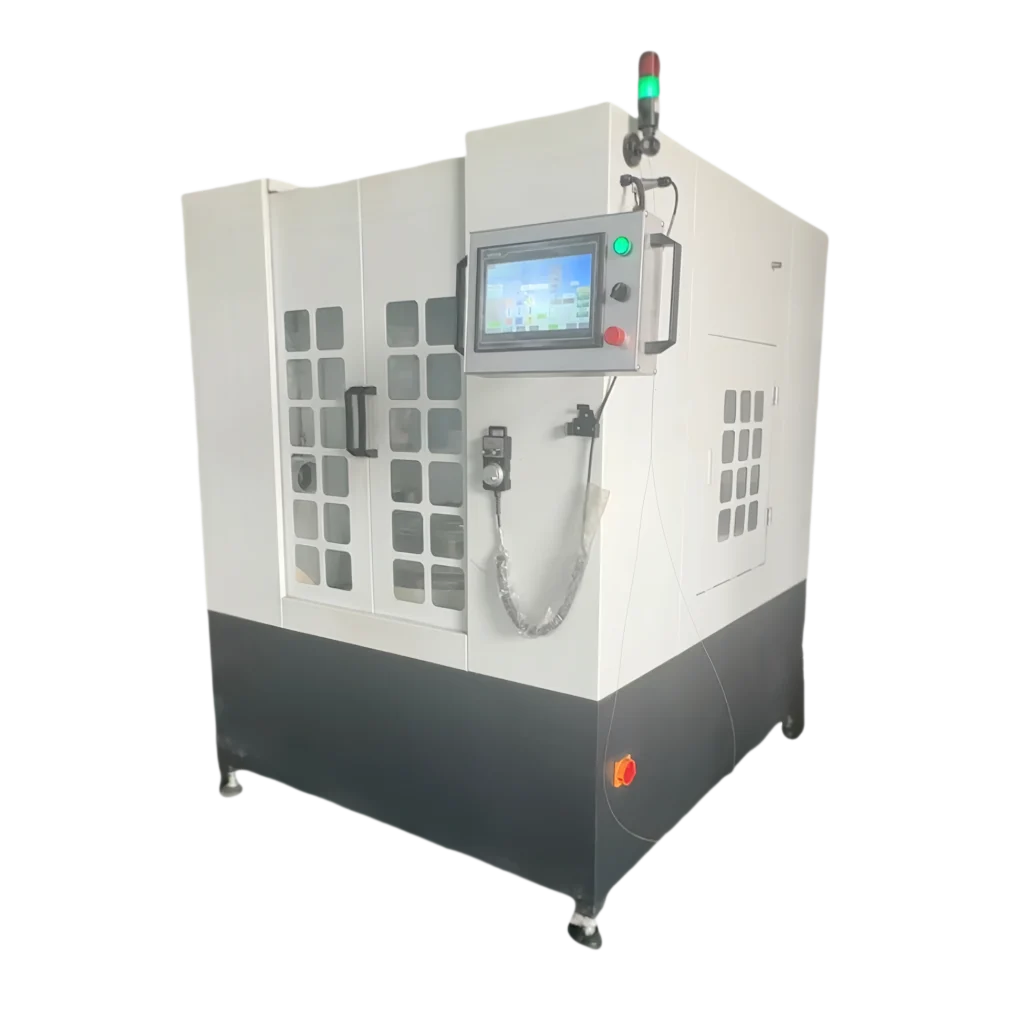

The SH60-R rotary diamond wire cutting machine is a versatile machine that cuts large, hard and brittle materials such as crystals.

It is highly suitable for materials such as sapphire, quartz, ferrites, ceramics and composite oxides. Durable and strong, the SH60-R performs quick, accurate slices while remaining smooth and reliable – perfect for commercial applications that have high-quality finishes.

Core to this machine is an endless brazed diamond wire system. This high-speed, continuous wire also means no vibration and clean cutting for precision results. Low kerf loss, high precision design of this model prevents edge damage and minimizes material waste with a kerf as narrow as 0.4 mm.

The SH60-R also ultra-low cutting force to minimize mechanical stress on fragile edges and avoid chipping or microfractures. It rotates workpieces so continuously that it gives you surfaces as smooth. It has a tremendous cutting capacity: maximum Ø600 mm in diameter (or square) and 500 mm in height, maximum loading weight: 500 kg, dealing with larger workpieces with aplomb.

Operation of High-speed diamond wire cutter

The working principle of the rotary diamond wire cutting machine is simple and practical. The machine employs a narrow wire coated with industrial-grade diamonds. This wire spins at a great speed as it travels across the material to be cut. The diamonds act like small, sharp teeth that cut into the floor, grinding away its surface without being too aggressive and damaging the material.

The wire’s rotation results in a seamless cut, eliminating potential cracks or fractures. Some machines feature superior motors and guides that are able to keep the wire straight, travelling at a constant speed. This is essential to produce slices with uniform thickness and not to damage the material quality.

Features of our precision diamond wire saw.

A high-grade rotary diamond wire cutting machine can serve you with powerful and easy-to-use functionalities. It has three-axis control, and it is one of the features. That means the wire can move in more than one necessary, enabling sophisticated cuts. The machine is also equipped with an adjustable wire tension system to avoid wire breaking and ensure good working.

Today, many newer machines have touch-screen interfaces, which make them easy to operate. Cutting speed, wire tension, and the number of passes to run for any material can be specified by the user. Safety functions, such as automatic cut-off in the event of a software or overload error, are already standard integrated features in professional machines.

Fine sensors are provided to monitor the position of the wire and any disparities in real time. This system ensures a consistent canopy and minimises material loss. The general design of the machine is typically small but strong enough to sustain when working on fragile materials.

The benefits of rotary wire sawing

The application of a rotary diamond wire cutting machine has many benefits compared to traditional cutting technologies.

It creates very smooth surfaces. While blade cuts can produce rougher edges or scratches, diamond wire cuts are smooth and precise. The effect of this is to minimise the necessity for further polishing or finishing.

The machine is very versatile. It is capable of processing materials with different rigidity and thickness, such as soft crystals to very hard ceramics. Third, it minimises material loss. The thin wire makes small kerfs, so material loss is smaller.

For several applications, the rotary diamond wire cutting machine is faster than conventional ones. These help minimize downtime and increase total productivity. The machines are safer to work with, thanks to a lower risk of wire breaking or material shattering compared to traditional tools.

Materials Processible with Rotary Diamond Wire Cutting

Because this Industrial wire cutting equipment can be applied to various materials, this is one example of why rotary diamond machines are effective. One of the most frequent materials cut by this equipment is silicon. It is commonly used in the manufacturing of semiconductors to make chips and solar cells. Another popular material is sapphire, which can be found in LED lights, smartphone screens and camera lenses, among other everyday items.

The stone and ceramic wire saw also performs well on quartz, glass, ceramics and crystal. Tech Performances Advanced ceramics, namely the silicon carbide and aluminium oxide variety, are some of the hardest materials on earth and therefore require a whole new level of power to be able to cut through them. These materials are easily handled with a CNC diamond wire saw machine to cut cleanly and without cracking.

It can even cut composite materials or those with different hardnesses in layers. The rotary diamond wire cutting machine is therefore suitable for manufacturers with diverse applications in electronics, optics and the high-tech industry.

Smart Tech Applications Of Our Wire Cutting Machine

Intelligentization of a typical modern rotary diamond wire cutting machine. Some machines, for auto tension Compensation, compensate wire tension according to the material’s hardness and softness, as well as differences in thickness, automatically. This encourages wire breakage and allows reliable operation.

More sophisticated machines also make use of equipment to sense wire wear. This alert notifies operators when the wire must be replaced, preventing any downtime out of nowhere. Furthermore, intelligent software can determine the optimum speed the material should be cut and the number of passes required, minimising human error and providing greater accuracy.

These multi-wire cutting technologies are networked on account of their connectivity characteristics. Performance can be monitored online by the operators, and material usage recorded and maintenance warnings given to off-site support. This innovation saves work, but it also allows businesses to stay on top of quality.

How to Get Smooth and Precise Cuts

There is a bit of a learning curve to get the best results with a floor-model diamond wire saw. Ensure you are using the correct wire for your material. Always use wire that is recommended for your specific material. Different materials demand different diamond grades and wire thickness.

The second is steady wire speed and tension. Rapid changes may produce an unbalanced cut or a transit wire fracture. The individual coolant type is also important. It cools, helps to prevent wire wear and provides a smooth cut.

Professional Rotary Diamond Wire Machine & How To Select

Selecting the correct rotary diamond wire cutting machine can be a difficult process. You just start by thinking about what you’re going to be cutting. For harder materials such as sapphire or silicon carbide, a machine with very powerful motors and high-precision wire control is required.

Then consider the capabilities of the machine. Multi-axis movement, automatic wire tension control, safety sensors and easy-to-use software are some of the features you need in a professional machine. Look for quality cutters from established brands that have a solid history of precision cutting.

There is demand not only for support and maintenance. Find machines with available parts, easy-to-understand manuals and good customer service. A good supplier will provide instructions for installation, operations and maintenance.

Take into account the scalable aspect of the machine. That said, if your business expands, you may need a machine that can accommodate higher volumes or work with automated systems.

Specialized in Cutting Machines for Semiconductor Materials

For precision cutting machines for semiconductors and other hard and brittle materials, Vimfun is one of the top leaders in the industry. Vimfun concentrates on diamond wire saws for the Semiconductors, Optoelectronics, Optical Components and Advanced Ceramic Slice industry.

Their semiconductor wafer cutting machines are famous for giving high-quality, precise cuts, no matter how difficult the material. They are dedicated to integrating advanced technology with human beauty, providing machines which can be used for large areas of industrial production and higher precision processing. Vimfun are the choice of manufacturers for the best quality, durability and performance.

FAQs

Is it possible to use a diamond wire machine for glass and ceramics?

Yes. Glass, quartz and glass can all be cut with diamond wire machines without risk of chipping.

How long does the wire need to be replaced?

Wire substitution is dependent on the material and purpose. Intelligent machines sometimes even have sensors to warn of wear on the wire, guaranteeing quality and safety.
