Thread Coated Diamond Wire Loop
The Thread-Coated Endless Diamond Wire Loop is designed for high-speed, high-efficiency cutting of hard and brittle materials. Featuring a helical electroplated diamond coating, it offers exceptional chip removal capability and reduced friction, making it ideal for long-cycle, high-speed slicing in demanding environments.
KEY FEATURES
Helical Diamond Coating: Spiral pattern improves chip evacuation and cutting stability
Optimized for High-Speed Operation: Reduces frictional heat and wire wear
Strong Abrasive Retention: Ideal for hard materials like alumina, SiC, and sapphire
Endless Loop Design: Continuous, low-vibration wire motion for consistent performance
Wire Diameters from 0.5–0.8 mm: Suitable for medium and fine slicing tasks
Recommended for Long-Duration Cutting: Maintains sharpness over extended use
| Outer Diameter | Coating Method | Core Wire (mm) | Working Tension Force | Breaking Tension Force | Recommed Length | |
| (mm) | (N) | (N) | (mm) | |||
| 0.55 | Steel | Thread | 0.33 | 100 | 200 | 1M-10M |
| 0.65 | Steel | Thread | 0.39 | 135 | 270 | 1M-10M |
| 0.8 | Steel | Thread | 0.51 | 210 | 440 | 1M-10M |
| 1.0 | Steel | Thread | 0.6 | 250 | 500 | 1M-10M |
Thread coated diamond cutting wire saw is usually used to cut materials that creat a lot dust, such as: graphite, cemented carbide embryos, embryo ceramics, corrugated paper, foam cement, Plastic etc.
In addition to this thread coated wire, we have 2 other types for you to choose from. If you don’t know which wire is suitable for your material, please contact us to learn more.

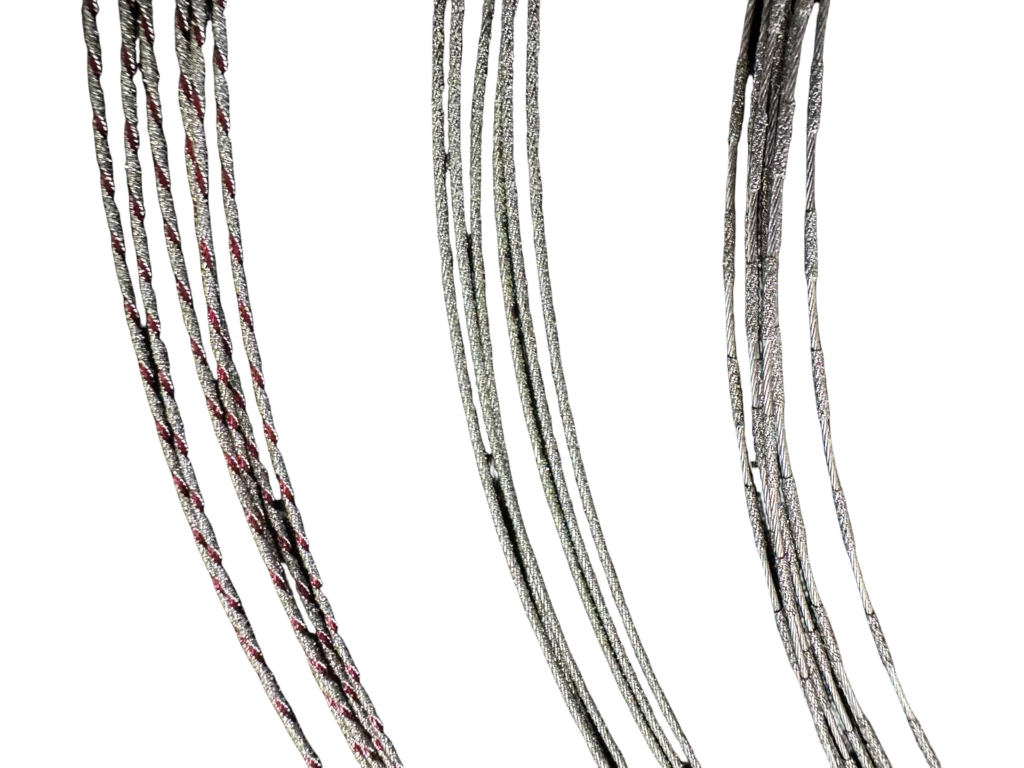

| Feature | Thread-Coated | Full-Coated | Segment-Coated |
|---|---|---|---|
| Chip Removal Efficiency | ★★★★★ | ★★★☆☆ | ★★★★☆ |
| Cutting Speed Suitability | ★★★★★ | ★★★☆☆ | ★★★★☆ |
| Surface Finish | ★★★★☆ | ★★★★★ | ★★★★☆ |
| Wire Longevity | ★★★★☆ | ★★★★☆ | ★★★☆☆ |

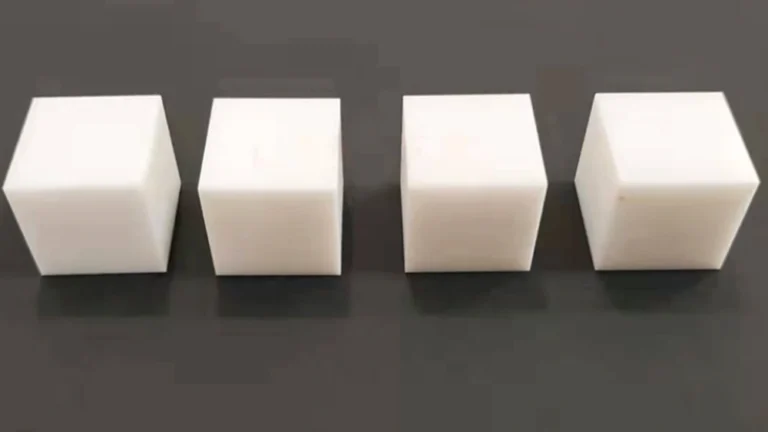

Alumina Ceramic Plates
Fast and clean slicing of insulator-grade alumina components for microelectronics

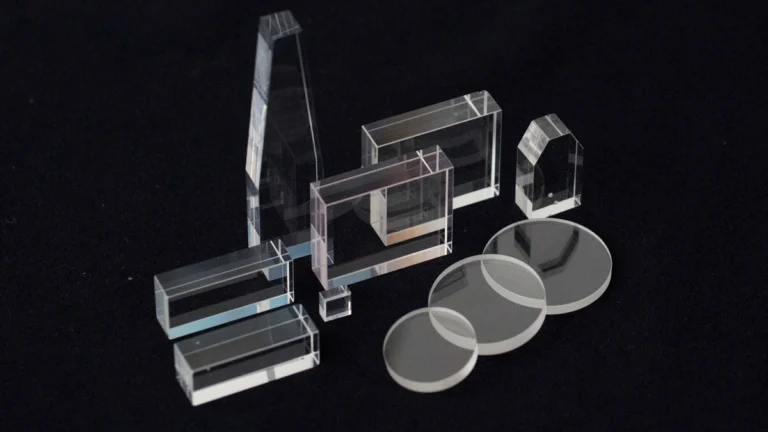

Optical Crystal Blocks
Quick slicing of hard photonic materials such as YAG and lithium niobate
Complicated Shape Cutting
Endless Diamond Wire Cutting Saw
What materials can I cut with an endless diamond wire saw?
How can I use an endless diamond wire loop saw?
You need a wire saw machine which can tention the cutting wire.buy one or manully make one.
What is the serving life of an endless diamond wire saw?
What is the wire length?
If the wire breaks, can it be reconnected and used again?
How Can I buy the diamond wire loop?
Let us konow your required wire dia and wire length, we will send the diamond wire loop to your location by DHL or Fedex.
